Stage 200P

General Specifications

Type

Powered Subwoofer

Low Frequency Driver

10-inch (250mm) Polycellulose Ribbed High Excursion

Amplifier Power

150W RMS (300W Dynamic)

Frequency Response ± 6dB

28Hz-150Hz

Crossover Frequencies

50Hz-150Hz (variable) 24dB/octave

Controls

35Hz-150Hz

Controls

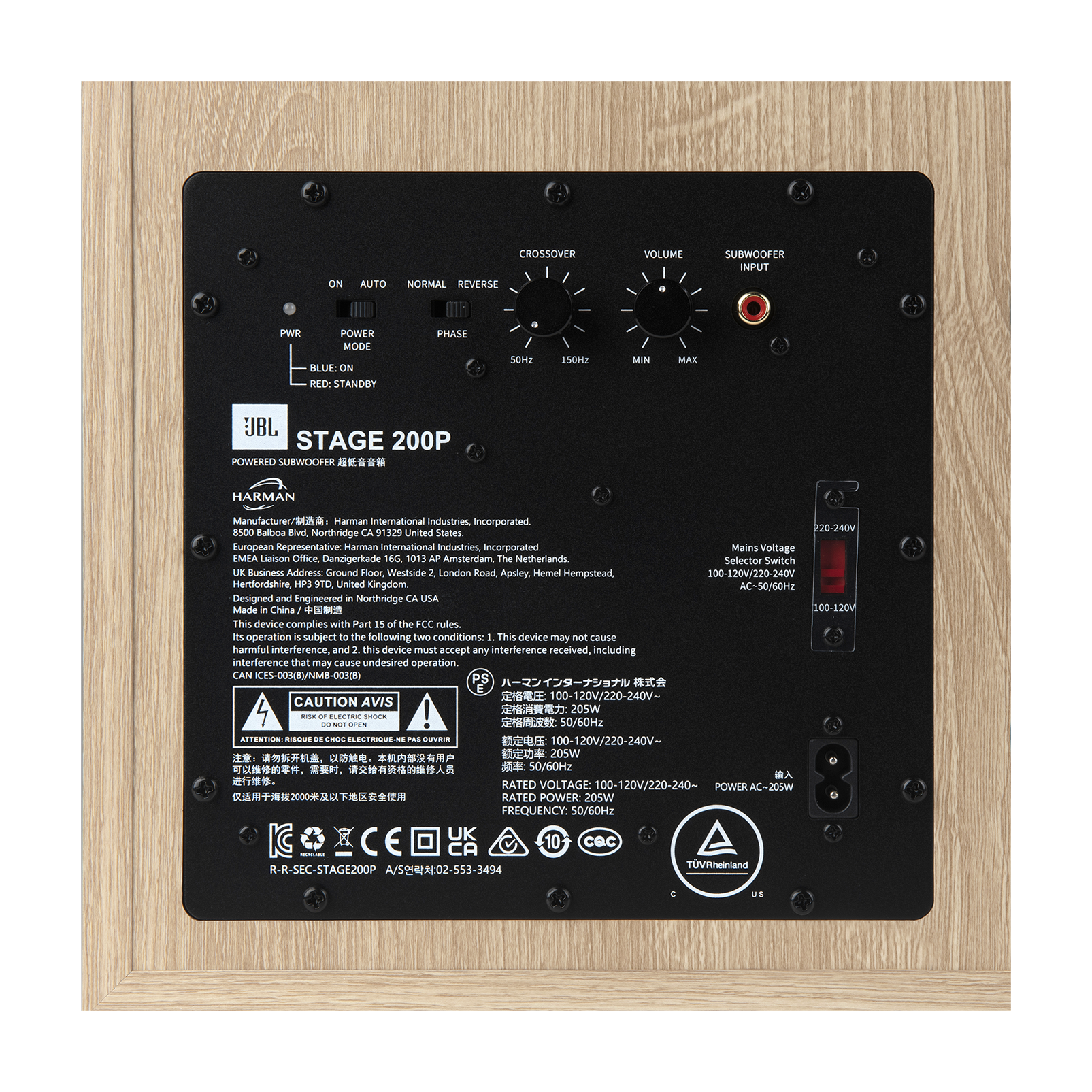

Auto Power, Crossover, Level, Phase

Inputs

One (1) Line-Level LFE Input

Enclosure Tuning

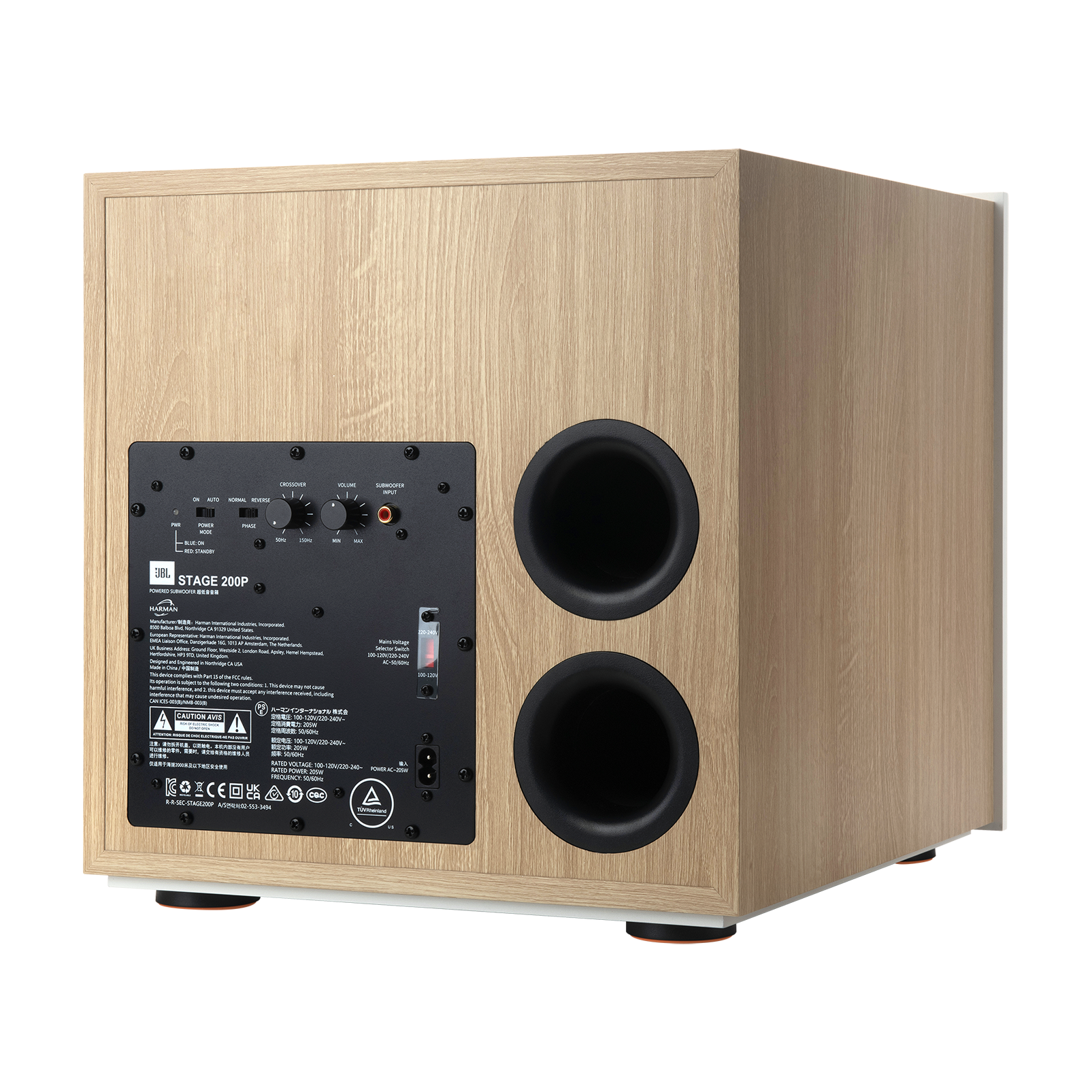

Bass-Reflex via Dual Rear-Firing Tuned Ports

Power Requirements

120V, 60Hz (US) 220-230V, 50/60Hz (EU)

Power Consumption

<0.5W (standby) / 205W/1.6A (max – 230V) / 205W/3.15A (max – 120V)

Dimensions

Dimensions (HxWxD)

14.2in x 13.8in x 15.2in (361mm x 350mm x 385mm)

Product Weight

31.8lbs. (14.4kg)

Shipping Weight

40.3lbs. (18.3kg)

Shipping Units of Measure

Each
