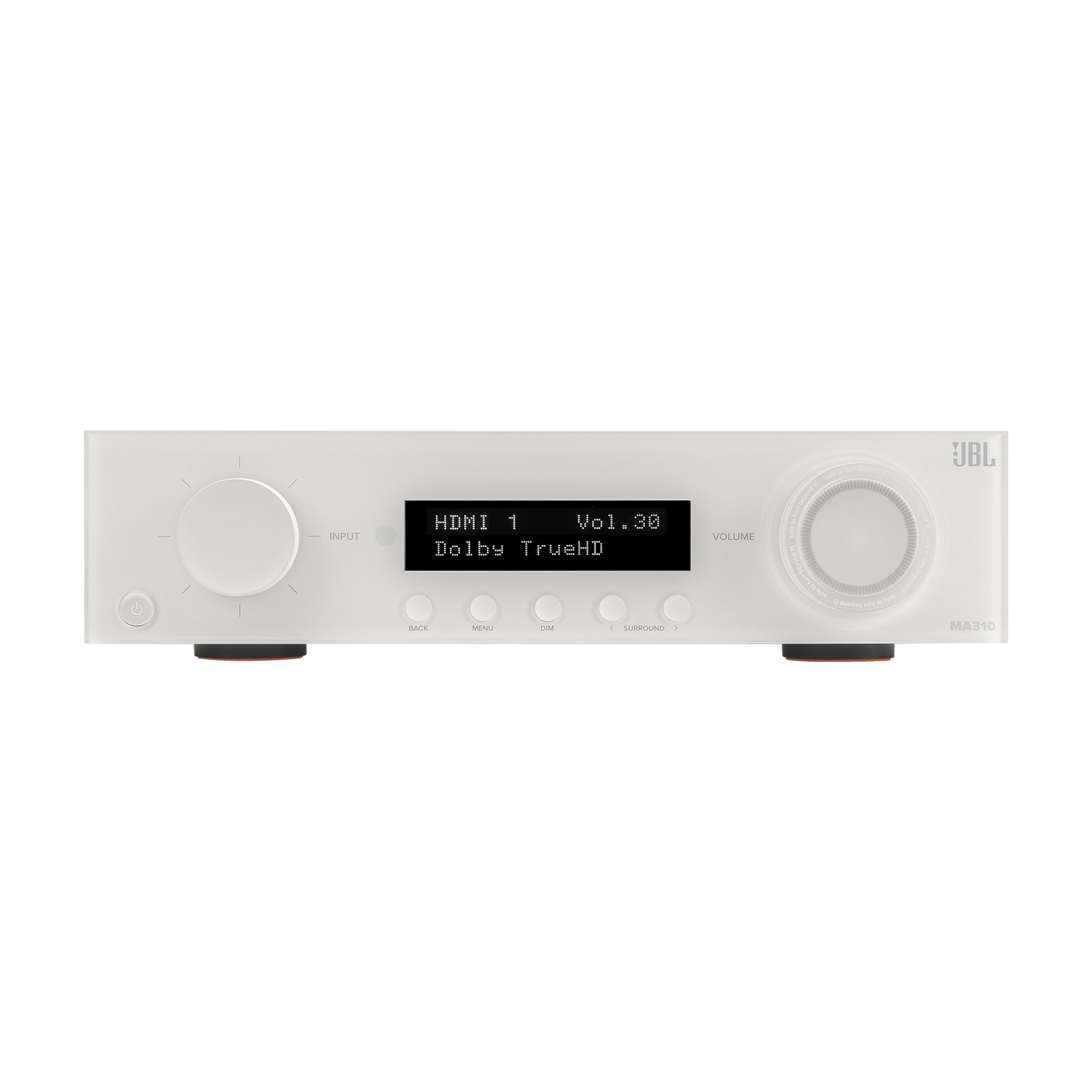

MA310

General Specifications

HDMI Audio Return Channel

Yes

4K HDMI input connectors (HDMI 2.0,HDCP 2.2 up to 4K/60Hz Ultra HD)

4

HDR 10

Yes

Pure Direct

Yes

EZ Set EQ

Yes

Digital signal processing

up to 24-bit/192kHz

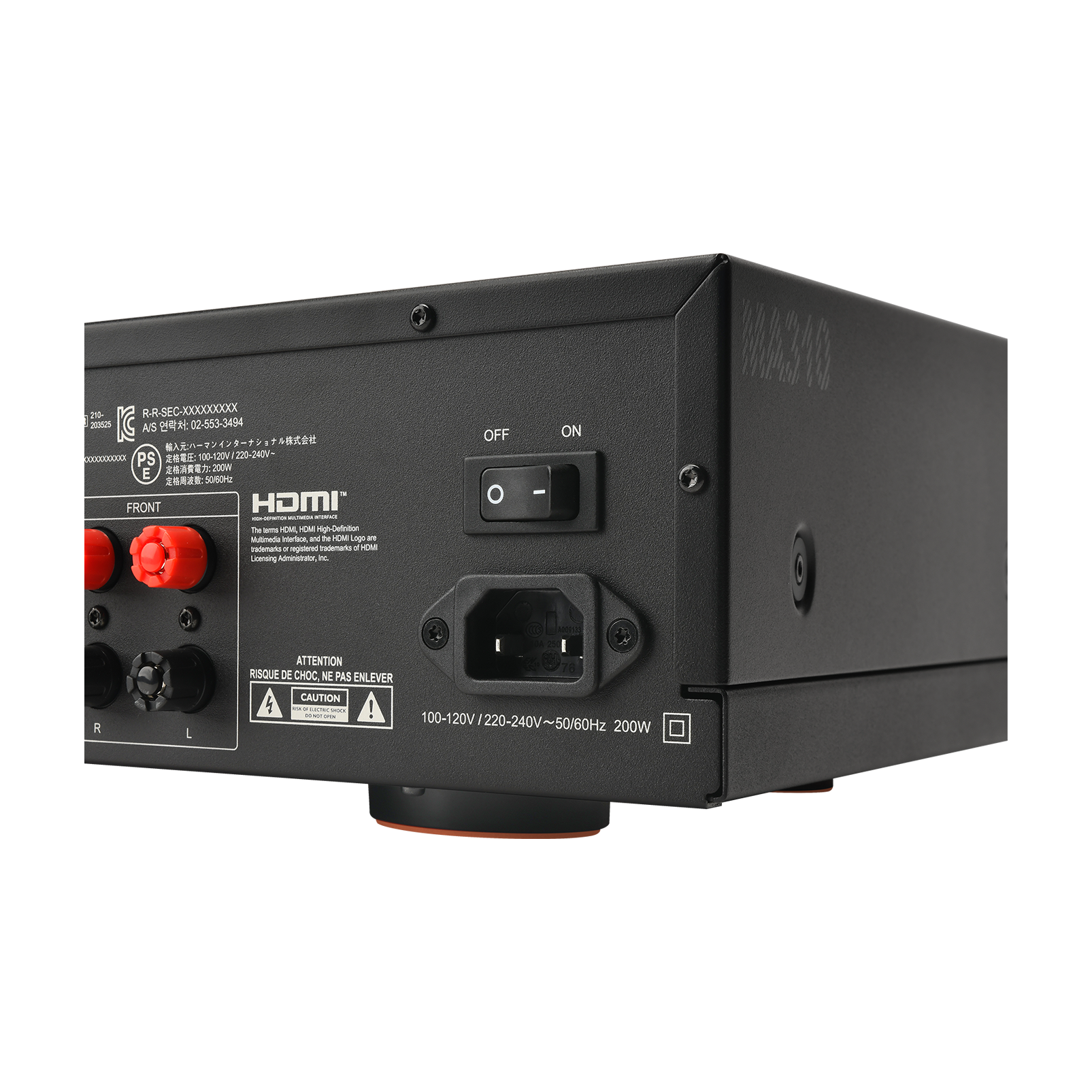

Mains voltage

110 – 240V, 50–60Hz

Max. power consumption

200W

Standby power consumption

<0.5W

Audio Specifications

Channels

5.2

FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)

50W

Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)

60 W RMS

Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)

100 W RMS

Dimensions

Dimensions incl. feet and speaker terminals (H x W x D)

4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)

Weight

11.3lb (5.1kg)

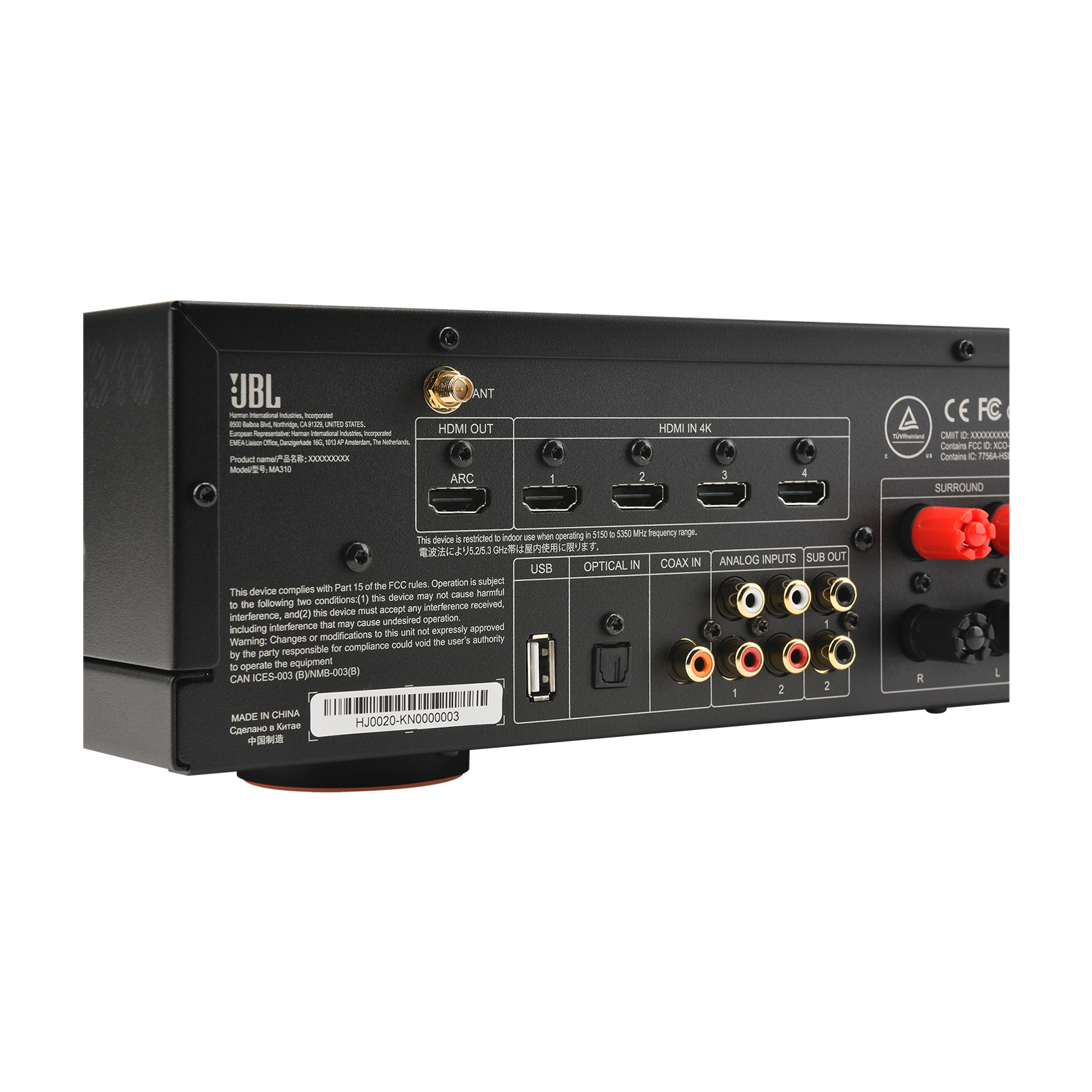

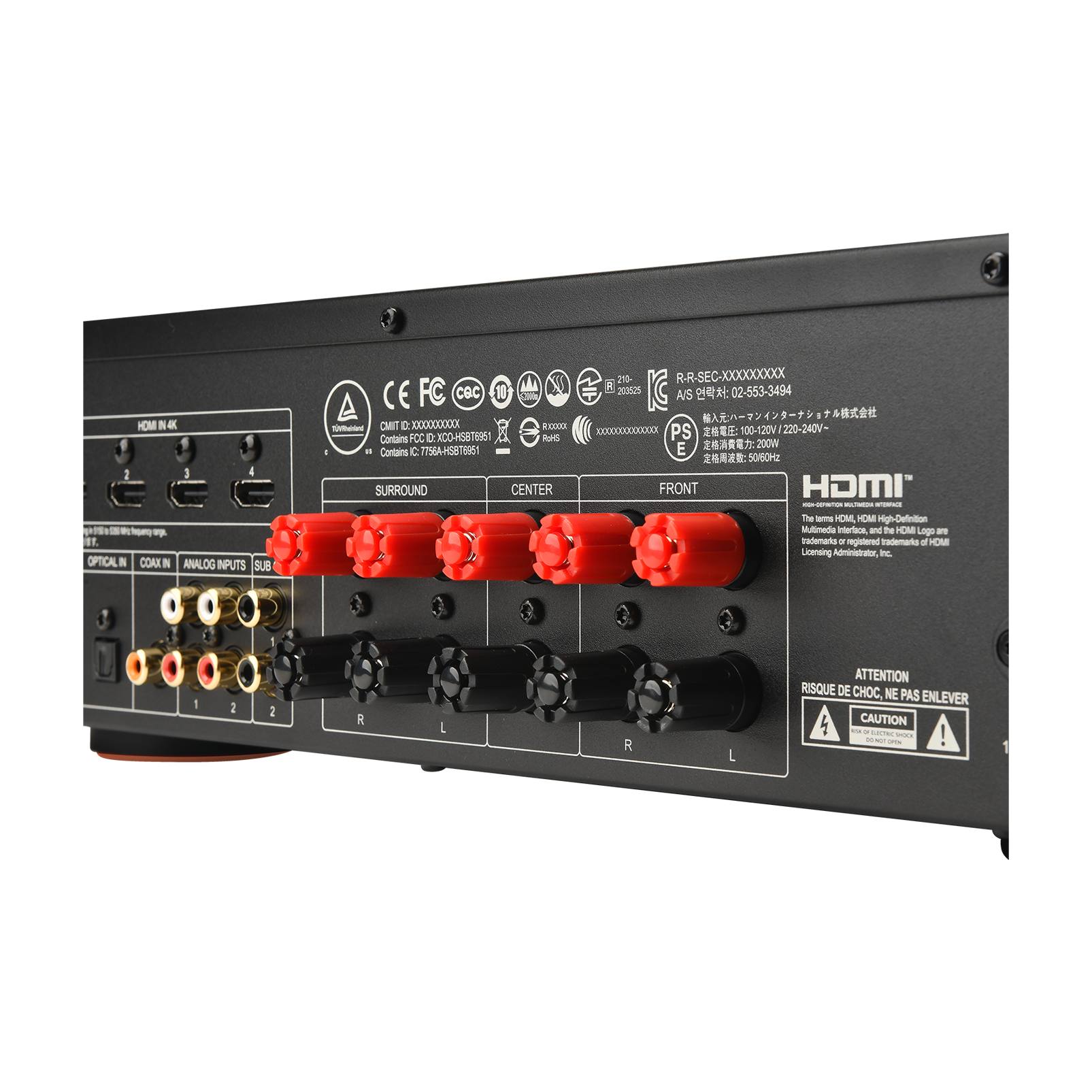

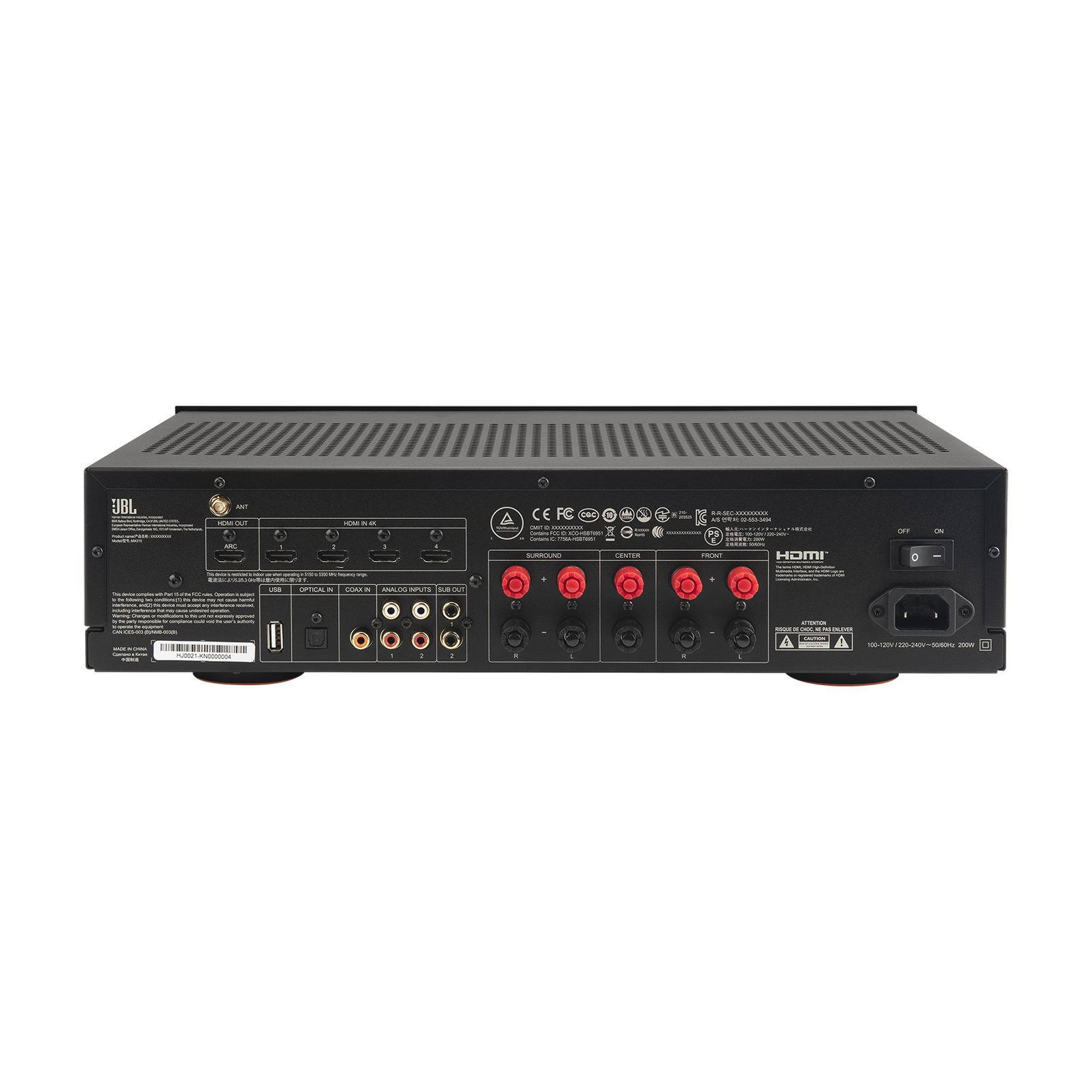

Control and Connection Specifications

HDMI Input/Output

4 / 1

Bluetooth receiver

Yes (v5.1, Low Energy)

Digital Audio Input

1 Coax, 1 Optical

Stereo analog input

2 single-ended RCA

Pre-Out (single ended RCA)

Subwoofer 1, Subwoofer 2
