JBL CBT 1000E (B-Stock)

General Specifications

Components

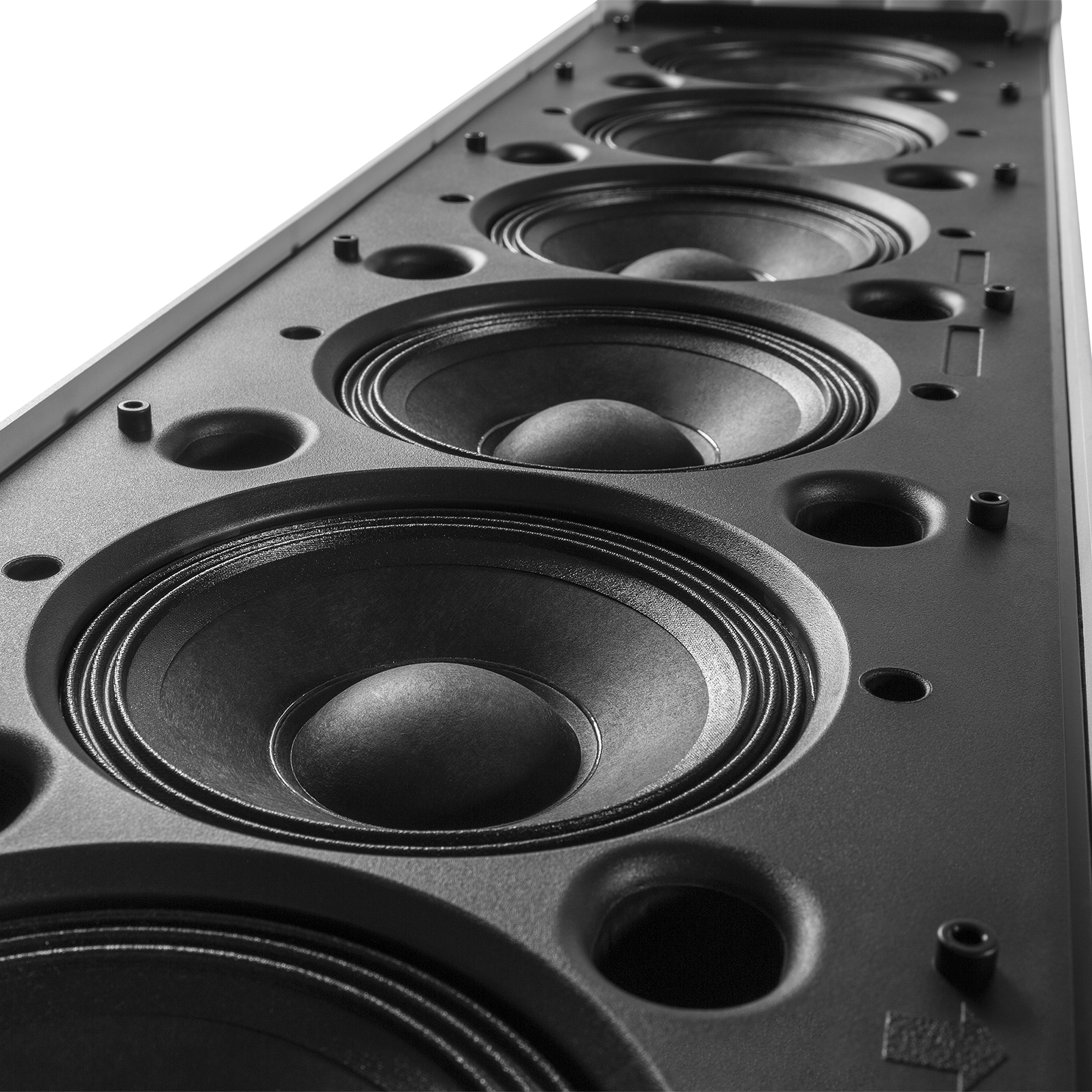

Six (6) 165 mm (6.5 in) LF drivers

Frequency Range (-10 dB)

38 Hz – 650 Hz

Sensitivity (2.83V@ 1m)

92 dB full space, 98 dB half-space (65 Hz – 300 Hz)

Nominal Impedance

8 ohms

Power Capacity

1500 W (6000 W peak), 2 hrs ; 1000 W (4000 W peak), 100 hrs

Maximum Input Voltage

100 Volts RMS (2 hrs), 200 Volts Peak (when powered separately, not in parallel with CBT 1000)

Max SPL

124 dB full space, 130 dB half-space (65 Hz – 300 Hz)

Outdoor Capability

IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. Exceeds Mil Spec 810 for humidity, temperature & UV, ASTM G85 for acid-air/salt-spray (200 hrs).

Dimensions

Net Weight

20 kg (44 lbs)

Shipping Weight

30 kg (66 lbs)
