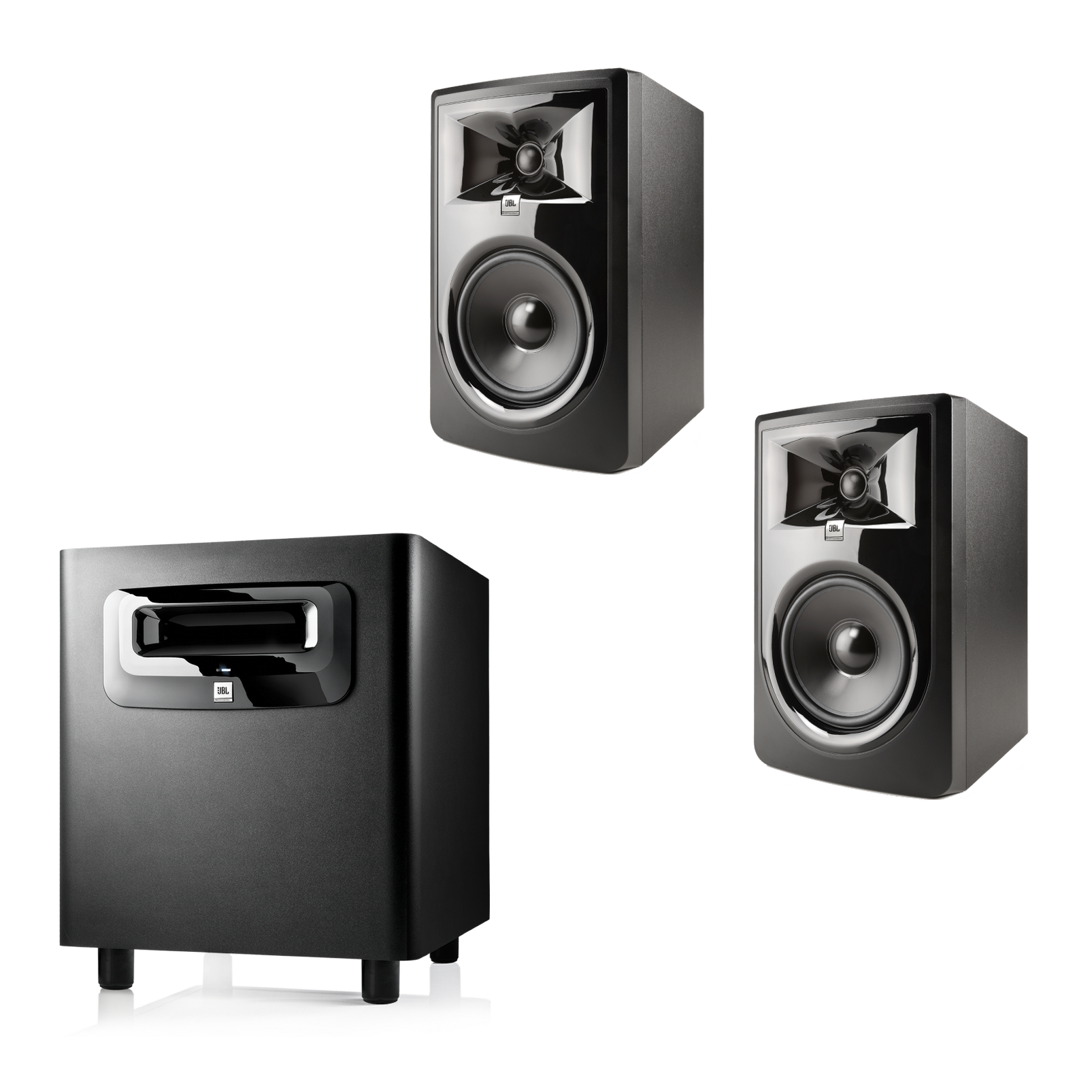

JBL 306P MkII + LSR310S Bundle

General Specifications

LF Driver Size

165 mm (6.5)

HF Driver Size

25 mm (1)

HF Driver Type

Soft dome

Crossover

1425Hz 4th order acoustic Linkwitz-Riley

Power Configuration

Bi-amplified

HF Driver Power Amp

56 W Class D

LF Driver Power Amp

56 W Class D

Frequency Response

47Hz – 20kHz (±3dB)

Frequency Range

39Hz – 24kHz (-10dB)

Low Frequency Extension

39Hz (-10dB)

Maximum Continuous SPL

92dB

Maximum Peak SPL

110dB

Maximum Peak Input Level

+6dBV / +20.3dBu (-10dBV / +4dBu)

System Distortion Criteria

<10% THD at maximum output with full compressor / limiter engagement

Electrical Distortion Criteria

0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output

Signal to Noise Ratio

75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output

Coverage Pattern

120° x 90° (horizontal x vertical)

HF Trim Control

-2dB, 0dB, +2dB

Boundary EQ

Boundary EQ -3dB, -1.5dB, 0dB

LF Shelf @ 50Hz

AC Input Voltage

100 – 240VAC (±10%), 50 / 60Hz

Dimensions

Height

361 mm (14.2)

Width

224 mm (8.8)

Depth

282 mm (11.1)

Net Weight

6.1 kg (13.42 lbs)

Design

Enclosure Type

Ported

Enclosure Construction

15mm MDF

Enclosure Finish

Matte black PVC

Baffle Construction

Injection-molded structural ABS

Audio Input

Analog Input Types

1 x XLR female, 1 x TRS female, balanced

Input Sensitivity

92dB / 1m (-10dBV Input)
